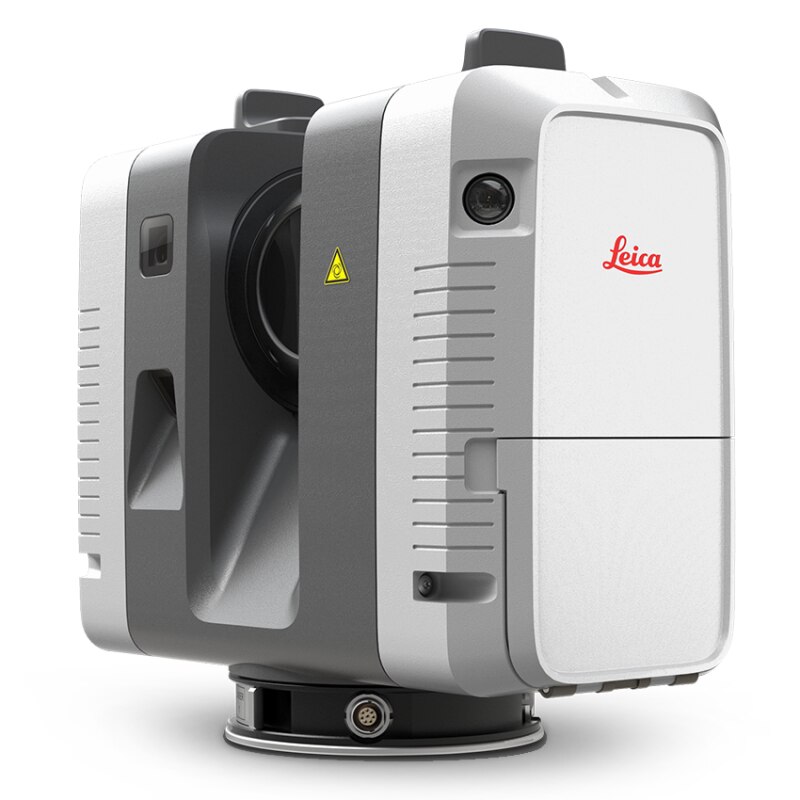

Leica RTC360 Laser Scanner Fast, agile and precise 3D reality capture solution Fast FAST The Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of colored 3D point clouds can be completed in under 2 minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximize productivity. Agile Agile Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use one-button operation makes for fast, hassle-free scanning. Precise Precise Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site. Leica RTC360 Product Specifications 3D Laser Scanner High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration Data acquisition < 2 min for complete full dome scan and spherical HDR image at 6mm @ 10m resolution Real time registration Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit Double scan Automatic removal of moving objects Distance measurement High-speed, high dynamic time of flight enhanced by Waveform Digitizing (WFD) technology Laser Class 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible) Field of view 360° (horizontal) / 300° (vertical) Range Min. 0.5 - up to 130 m Speed Up to 2‘000‘000 pts / sec Resolution 3 user selectable settings (3/6/12mm @ 10m) Accuracy Angular accuracy 18” Range accuracy 1.0 mm + 10 ppm 3D point accuracy 1.9 mm @ 10 m 2.9 mm @ 20 m 5.3 mm @ 40 m Range noise 0.4 mm @ 10 m, 0.5 mm @ 20 m Camera 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° x 300° spherical image Speed 1 minute for full spherical HDR image at any light condition HDR Automatic, 5 brackets Visual Inertial System Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time Tilt IMU based, Accuracy: 3‘ for any tilt Additional sensors Altimeter, Compass, GNSS On scanner Touch-screen control with finger touch, full color WVGA graphic display 480 x 800 pixels Mobile devices Leica Cyclone FIELD 360 app for iPad or Android tablets including: - Remote control of scan functions - 2D & 3D data viewing - Tagging - Automatic alignment of scans Wireless Integrated wireless LAN (802.11 b/g/n) Data storage Leica MS256, 256GB exchangeable USB 3.0 flash drive Housing Aluminium frame and sidecovers Dimensions 120mm x 240mm x 230mm / 4.7‘‘ x 9.4‘‘ x 9.1 Weight 5.35 kg / 11.7 lbs, nominal (w/o batteries) Mounting mechanism Quick mounting on 5/8“ stub on lightweight tripod / optional tribrach adapter / survey tribrach adapter available Internal battery 2 x Leica GEB361 internal, rechargeable Li-Ion batteries. Duration: Typically up to 4 hours Weight: 340 g per battery External Leica GEV282 AC adapter Operating temperature 5° to +40° C Storage temperature 40° to +70° C Dust/Humidity Solid particle/liquid ingress protection IP54
